Roof Curving Machine

Roofing Panel Curving Machine

The panel curving machine is a kind of equipment used to produce the arc plates without crease. By using two underneath drive rollers and one above roller, it can drive the plate back and forth  on the roller to achieve the satisfying plate. Its main component is host machine.

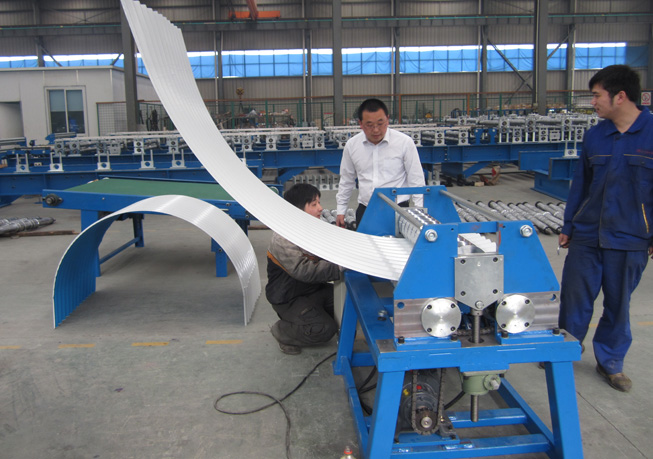

Curving Roof Forming Machine

Roofing Panel Curving Machine Specifications:

No Item Parameter Remark
1 Suitable Material Type Color coating steel
Thickness(mm) 0.4-0.7 According to customer's requirement
Yield Strength(Mpa) 230-300
2 Forming Speed(m/min) 2.0 Not including cutting time
3 Material of Punching Die 45chromeplate with hard chromized
4 Min. Curving Radius 500mm
5 Power source Type 380V/3PH/50HZ According to customer's requirement

Display of Roofing Panel Curving Machine:

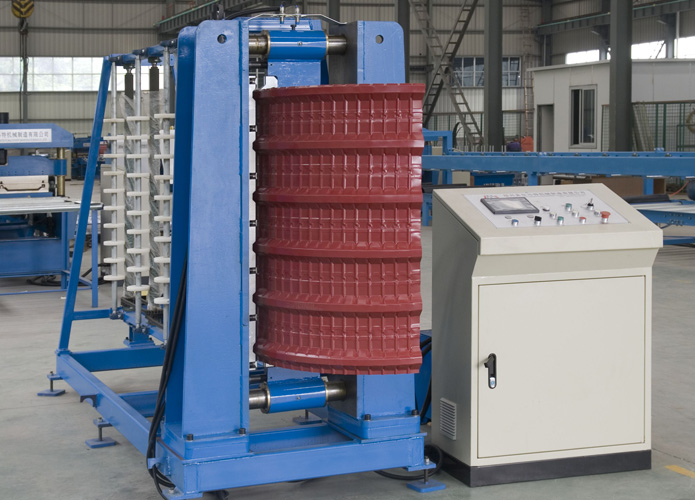

Roofing Panel Curving Machine

Curving Roller Forming Machine
