EPS Sandwich Panel Machine

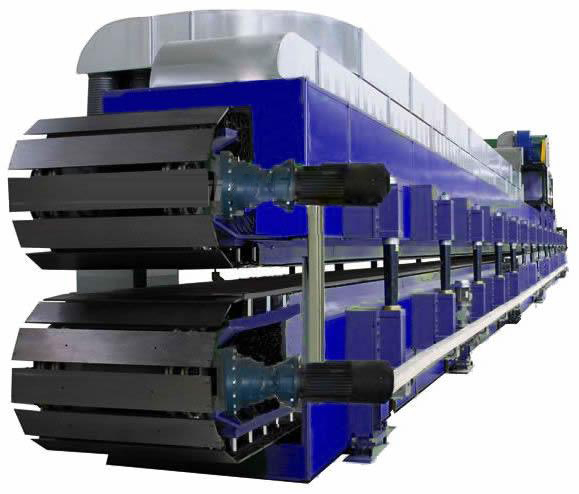

EPS Sandwich Panel Machine for Sale

Sandwich panel is a new multi-function construction material for construction and decoration with the advantage of insulation, fire proof and decoration. It is mainly used for public construction, like industrial workshop, supermarket, bulk warehouse, large span roof, and prefabricated house, different kinds of cold storage, air condition room, decontamination chamber, and communication base station.etc. Sandwich panel has been an ideal new construction material with the advantage of high intensity, beauty, easy to construct in a short time.

EPS Sandwich Panel Machine for Sale

Learn more information about Sandwich Panel Production Line, please click HERE.

Features of EPS Sandwich Panel Machine:

  • Roof panel forming machine adopt the gear reducer to transmit, motor power is 5.5KW, and processing speed is 5.5m/min. The processing speed can be adjustable by step less speed frequency conversion.
  • Assemble machine adopt the gear reducer to transmit, motor power is 3KW, and processing speed is 6m/min. The processing speed can be adjustable by step less speed frequency conversion.
  • Normally processing EPS sandwich panel, the speed is 2.5-6m/min, rock wool, glass wool sandwich panel processing speed will be lower than 1.5-3m/min.
  • The whole line speed was controlled by the motor synchronous controller, with step less speed and digital display.

Technical Data of EPS Sandwich Panel Machine:


Raw material color coated steel coil
Coil weight Max. 5 ton
Coil width 1,000 ~ 1,250mm
Coil thickness 0.4 ~ 0.7mm
Panel length 3~15mm
Panel width Max.1,200mm
Panel thickness 50~150mm
Temperature of factory 18+- 2°C
Density - EPS:10 ~ 21 kg/m3
- Glass wool: 48 ~ 64 kg/m3
- Mineral wool: 100 ~ 120 kg/m
Inner height of building 6m
Production Capacity of this Production Line 5-7m/min
Required man power 3~5 person


Types of EPS Sandwich Panel Machine:

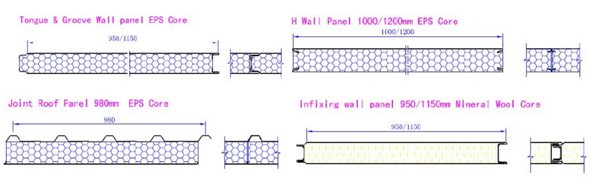

EPS Sandwich Panel Machine Profiel

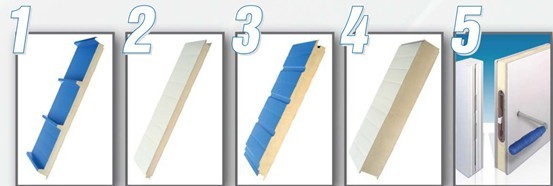

Sandwich Panels Classification

  1. the roof sandwich panels
  2. the wall sandwich panels
  3. the hidden bolt sandwich panels
  4. the fridge sandwich panels
  5. the cam lock sandwich panels.


Spread Glue Device

The assemble line adopt the measuring pump to feed the glue .The down steel panel spread the glue well-proportioned by the droplet of glue tube .Then through the spread glue structure (spread glue speed:80 times/min) to be well proportioned the two kinds of glue. Up steel sheet spread glue well proportioned by the up glue spray system.

  • Numbers of pump: 4 sets (top and bottom each 2)
  • Driven power: 0.37 kW
  • Flow volume of glue: 0 ~0.4 kg per pump
  • Type of flow volume control: Change frequency
  • Scale of glue: (white)1: (Black) 1.5

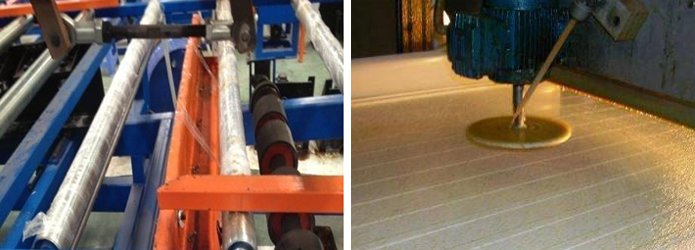

Spread Glue Device of Sandwich Panel Machine
