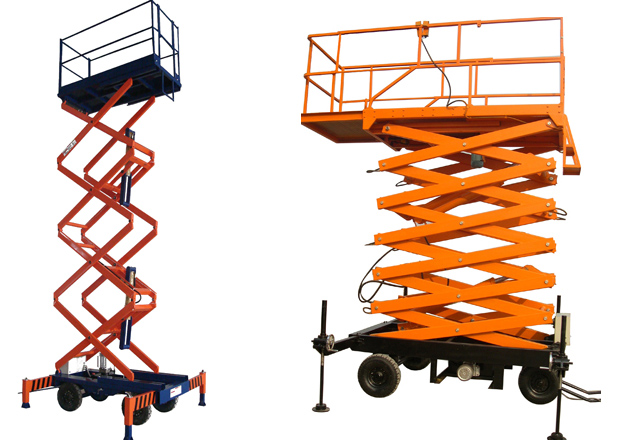

Mobile Traction Scissor Lifts
Mobile traction scissor lifting platforms take advantage of external force to make lifting equipment, with three-phase power or diesel-powered, moving fast and convenient, good for long-distance operations.
Electric and mobile scissor lifting platforms are suitable for all construction sites, brick work, paint job, glass cleaning, fixing and maintenance, decoration in high rise, transforming the goods between shells, producing shells, production line for different height in warehouse, bridge, elevated work and so on.
As one convenient lifting equipment, mobile traction scissor lifts have electric up-down switch and auto up-down switch, the worker on the ground or on the table can control the up and down of the table. Lift table is equipped with hydraulic pump used for no power circumstances, the cylinder of this table has the unloading control value, when the hydraulic system is out of work.
Specifications of Mobile Traction Scissor Lifting Platforms:
| Programs | Specifications & Parameter | Unit | |
|---|---|---|---|
| Specified capacity | 500 | 300 | kgs |
| Max height of table | 14000 | 6000 | mm |
| Min height of table | 1800 | 950 | mm |
| Dimension of the table | 2600*1500 | 1780*840 | mm |
| Direct current | 220v/440v | v | |
| Alternation current | 380 | 380/50Hz | v |
| Motor | 4 | 1.1 | Kw |
| Elevation Time | 132 | 54 | Sec |
| Out ward dimension | 2800 | 620 | Length mm |
| 1600 | 370 | Width mm | |
| 14000 | 6000 | Height mm | |
| Total weight | 2500 | 750 | kgs |
This mobile traction scissor lifting platform is useful in all industries, construction sites, building maintenance, glass cleaning, railways, defence, police, fire dept, disaster management, bridge worth, house kepping, malls and so on.
